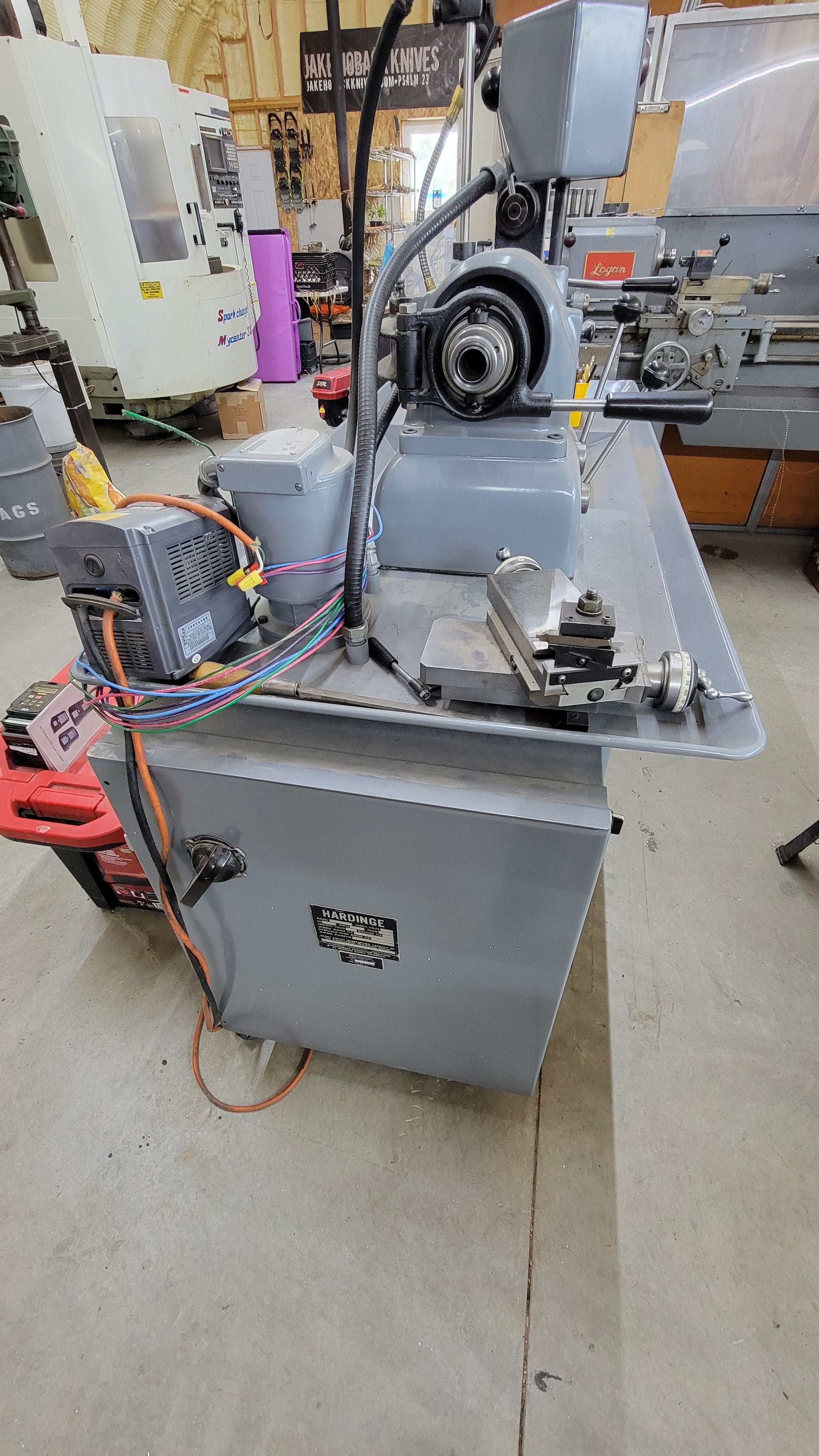

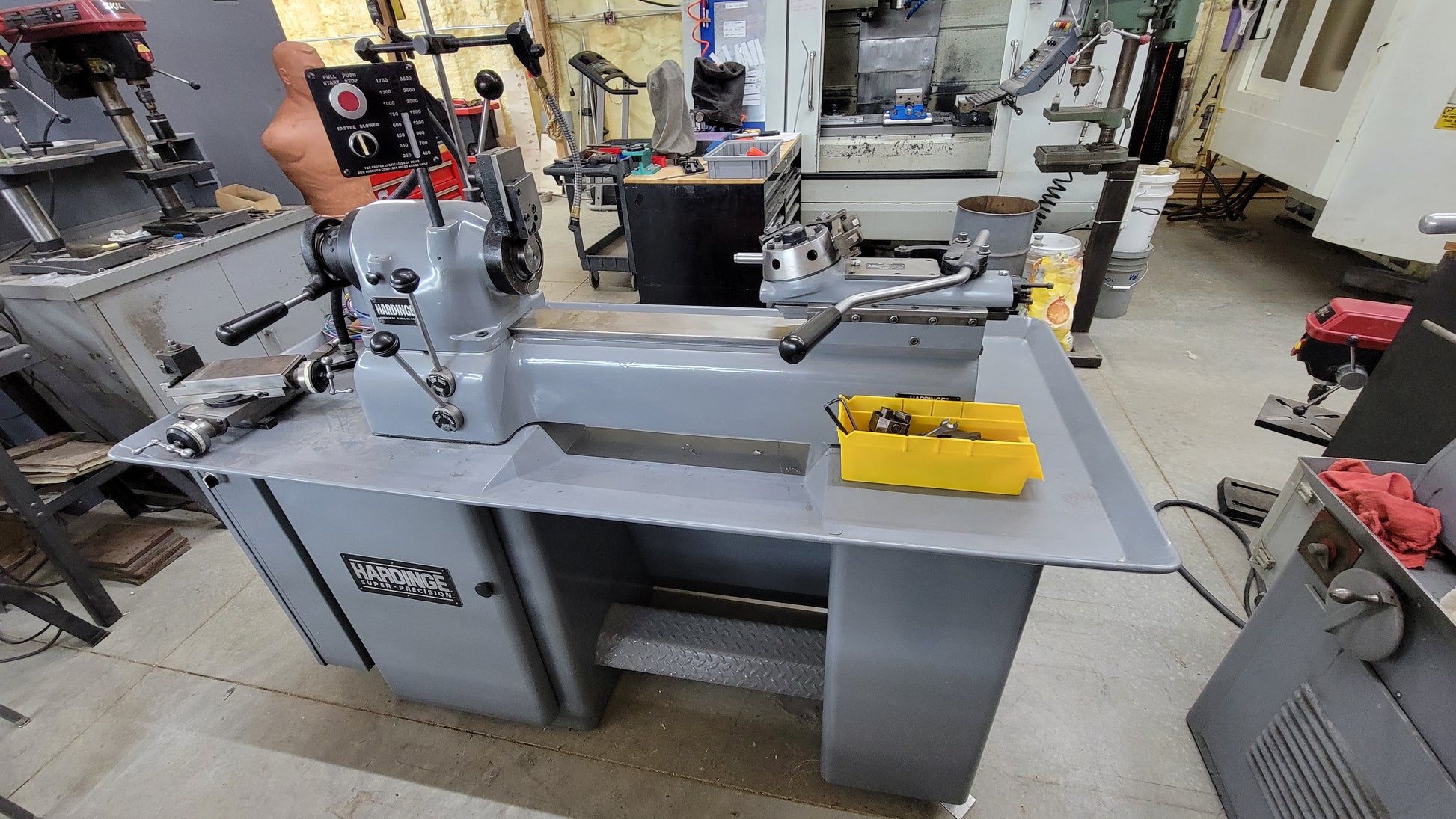

Meticulously Restored Hardinge DSM-59 Ultra Precision Lathe

As you know, we're constantly upgrading the tools and processes here at Hoback Customs to push our craft forward. The Bone Yard is where we offer our proven, shop-tested machinery to you. This isn't just a used machine; it's a piece of equipment that has served us well and is ready for a new home.

A True Time Capsule – Ready for Work

If you understand precision, you understand the name Hardinge. This DSM-59 isn't a beat-up auction find; it's a "time capsule" machine that has undergone a meticulous and complete restoration. We brought it back to a condition that you simply do not find on the open market.

The restoration was so thorough that it even features the protective plastic covers over some of the labels, just like a brand-new machine from the factory. It runs as good as it looks. The legendary "dead-nuts" accuracy that made Hardinge famous is all here. You are not buying a project; you are buying a turnkey, ultra-precision tool ready to make chips the day it lands in your shop.

This is your chance to own a classic piece of American-made iron, perfect for second-operation work, gunsmithing, prototyping, or any application where absolute precision is non-negotiable.

Please be aware it is a used machine so some signs of wear are to be found. Machine will have some minor scratches and dings. Machine was restored and used 1 time for a short job to confirm function of everything.

---



Technical Specifications



• Make: Hardinge

• Model: DSM-59 (Dove Tail Bed)

• Type: Ultra Precision Second Operation Lathe

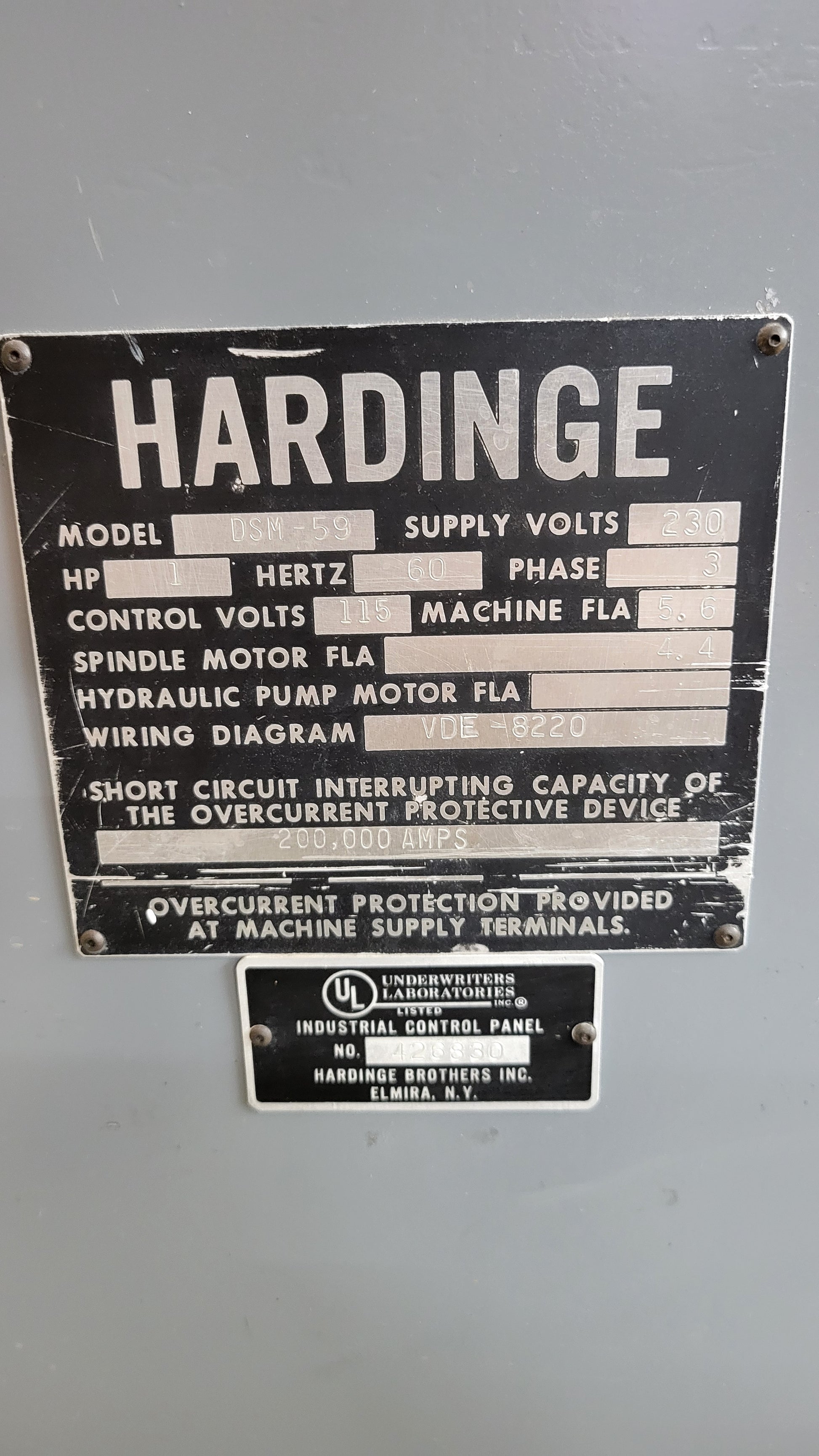

• Serial Number: 426830

• Condition: Fully Restored - Shop-Tested and Approved.



Capacities:



• Spindle Collet Capacity (5C): 1-1/16" Round

• Swing Over Bed: 9"

• Travel of Cross Slide: 4-3/4"

• Travel of Tool Post Slide: 2-3/4"



Spindle & Drive:



• Spindle Nose: Hardinge Tapered

• Spindle Speed Range (Variable): 230 - 3500 RPM

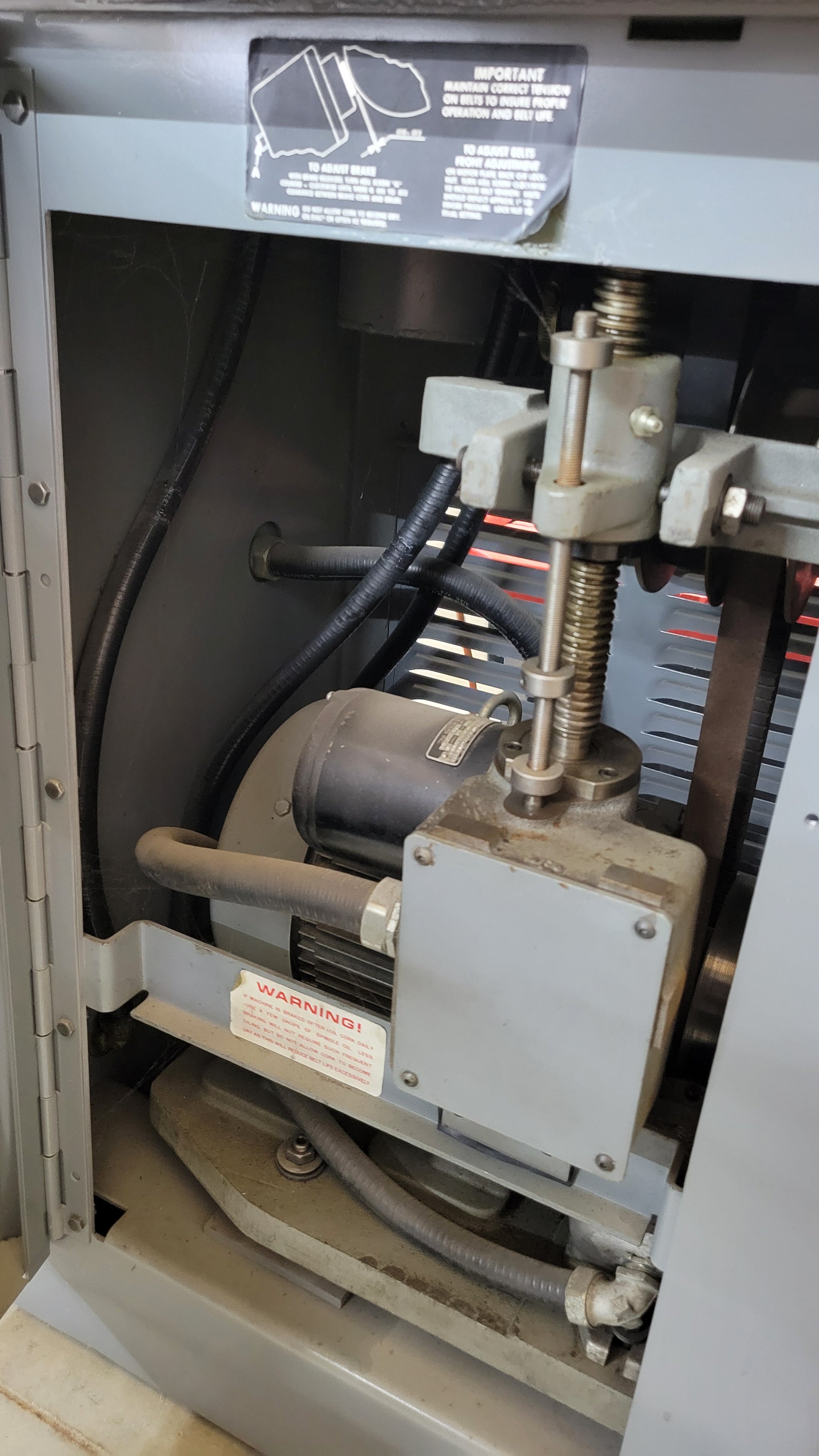

• Drive Motor: 1Hp 230v 3phase (we ran it off of a 2hp VFD, not included)

Included Features & Tooling:

• Lever-Style 5C Collet Closer

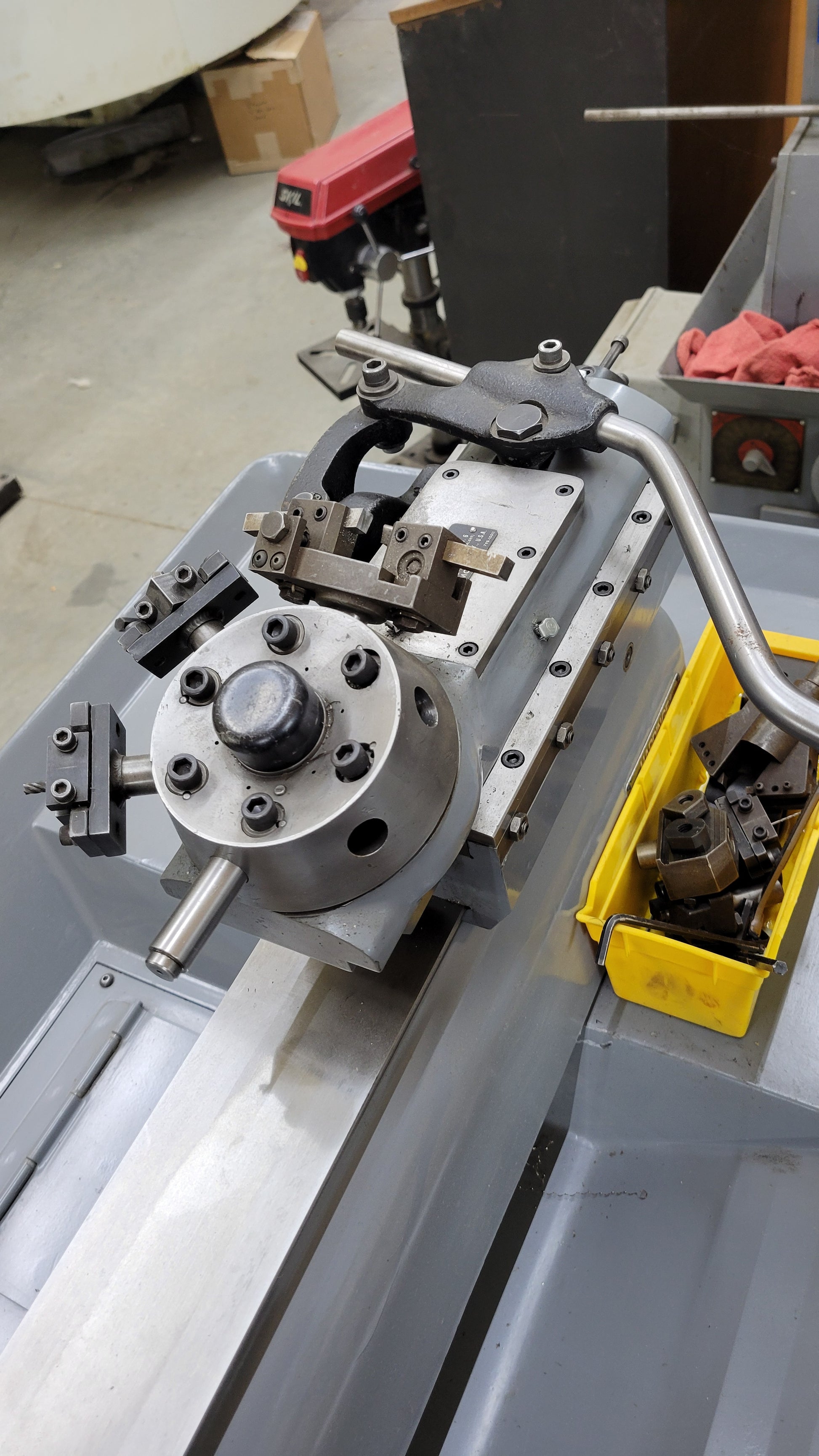

• 6-Position Bed Turret

• Double Tool Cross Slide

• Full Coolant System

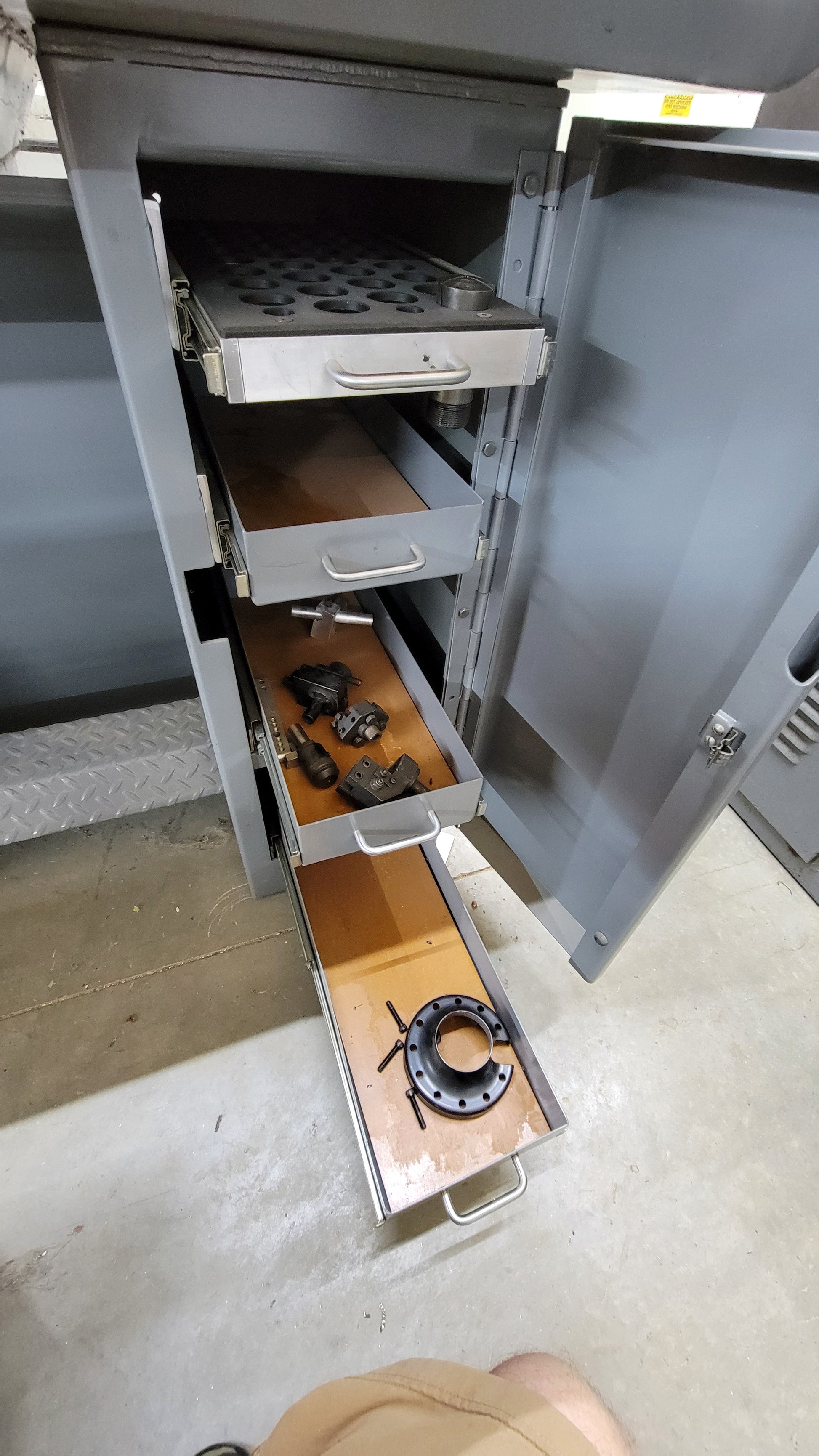

• Solid selection of turret tools

• A Hardinge cross slide (super rare)
• Selection of 5c collets
• Over spindle Part off tool (very rare and handy)

---



Shipping & Logistics - PLEASE READ



This is a heavy item that must ship via freight.

• The price listed does NOT include shipping.

• Local pickup at our shop in Priest River is welcome and encouraged.

• If you require freight shipping, you are responsible for arranging and paying for it. We can assist by preparing the machine for shipment (palleting/crating) for a fee. We are happy to work with your chosen carrier.

For a freight quote or to discuss logistics, please contact us directly before purchasing.

This machine is sold "as-is" from our Bone Yard. All sales on Bone Yard items are final.



Video tour of machine.
